Power Twister Eisen
Concrete - Universal
Power Twister Eisen
UNMATCHED QUALITY!
Main points
Universal power for iron and concrete!
• Time saving due to fewer tool changes
• Self cooling during dry cutting
• Very long lifetime
• High frequency laser welding
Recommendation
engine disconnector / dry wet cutting
Ø 300 - 400 mm
angle grinder / dry cut
Ø 115 - 400 mm
Highlights
Materials
• Specialization: Iron, Concrete
• Time-Saving by Reducing Tool Changes
• Self-Cooling in Dry Cutting
• Extremely Long Service Life
• High-Frequency Laser Welding
Product information
| Diameter | Article number | Segment height | Recording | Segment strength |
|---|---|---|---|---|
| 400 mm | 04006 | 7 mm | 30,00 mm | 2,8 mm |
| 400 mm | 04004 | 7 mm | 25,40 mm | 2,8 mm |
| 400 mm | 04002 | 7 mm | 20,00 mm | 2,8 mm |
| 350 mm | 03506 | 7 mm | 30,00 mm | 2,8 mm |
| 350 mm | 03505 | 7 mm | 30,00 mm | 2,8 mm |
| 350 mm | 03504 | 7 mm | 25,40 mm | 2,8 mm |
| 350 mm | 03502 | 7 mm | 20,00 mm | 2,8 mm |

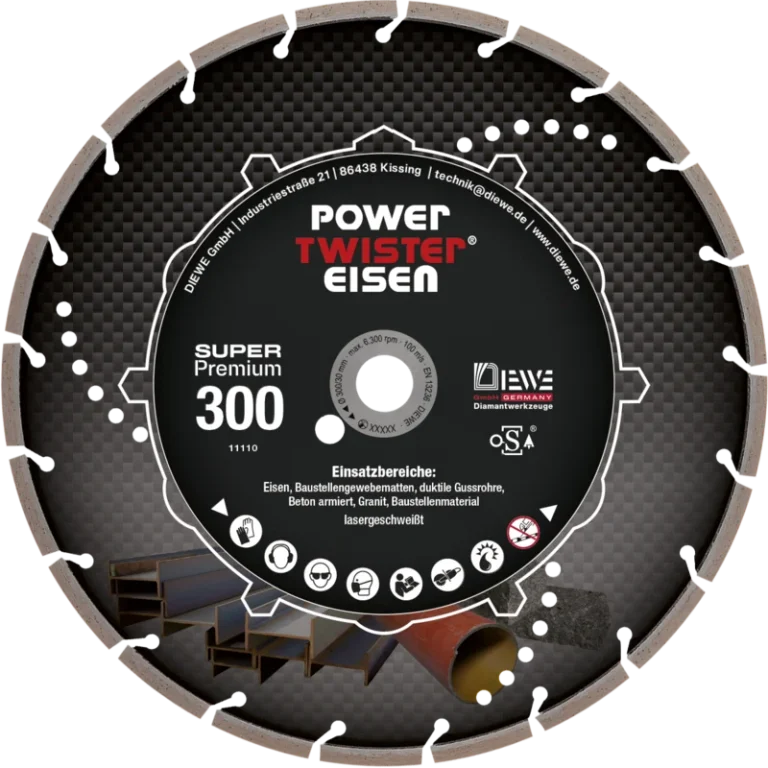

| 300 mm | 03005 | 7 mm | 30,00 mm | 2,8 mm |
| 300 mm | 03004 | 7 mm | 25,40 mm | 2,8 mm |
| 300 mm | 03003 | 7 mm | 22,23 mm | 2,8 mm |
| 300 mm | 03002 | 7 mm | 20,00 mm | 2,8 mm |

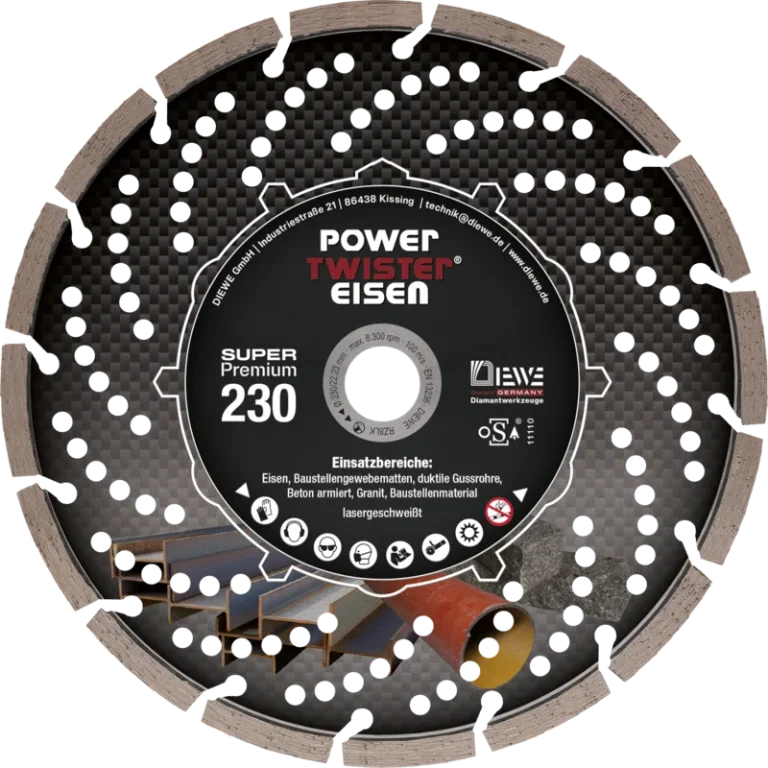

| 230 mm | 02273 | 7 mm | 22,23 mm | 2,4 mm |
| 125 mm | 02123 | 7 mm | 22,23 mm | 2,4 mm |
| 115 mm | 02113 | 7 mm | 22,23 mm | 2,4 mm |
Application areas
Eisen
Baustellengewebematten
Duktiles_Gussrohr
Beton_armiert
Granit
Baustellenmaterial
